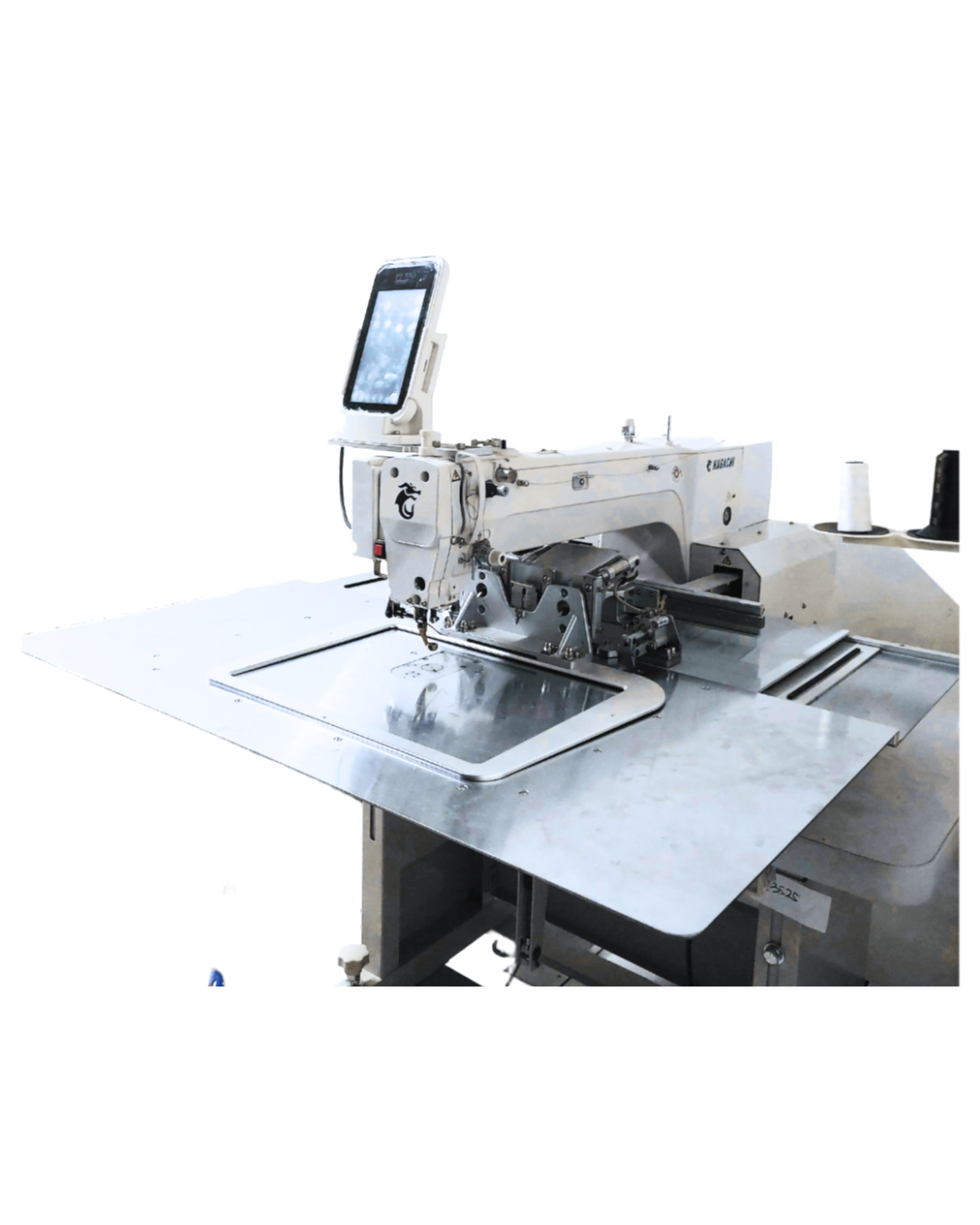

Nagachi CNC Pattern Sewing Machine
The CNC Pattern Sewing Machine eases automation in sewing with the use of programmable coordinate point stitching and running stitching system. The setup enables machine configurations customization through the use of modular workpiece clamps and workpiece handling equipment which may include material dispenser, cutter, and manipulators. The machine function may be further enhanced with sewing template frames for workpiece positioning and fixture.
Our CNC Pattern Sewing Machines are available with both pneumatic and electric automation components.
| Model | NG-BR3525G |
| Type | CNC Pattern Sewing Machine |
| Application | Medium to Extra-Heavy Weight Material |
| Needle | DPx17 |
| Stitch Type | Lockstitch |
| Thread Count | 2 |
| Stitch Length | 0.05~12.7 mm |
| Material Thickness | 20 mm |
| Sewing Area | 350×250 mm |
| Feed Mechanism | Clamp Feed |
| Max. Speed | 2500 RPM |
| Power | 600 W |
| Voltage | 220 V |
| Electricity Frequency | 50 Hz |
| Dimensions (L;W;H) | 1100;1200;1230 mm |
| Weight | 190 kg |
